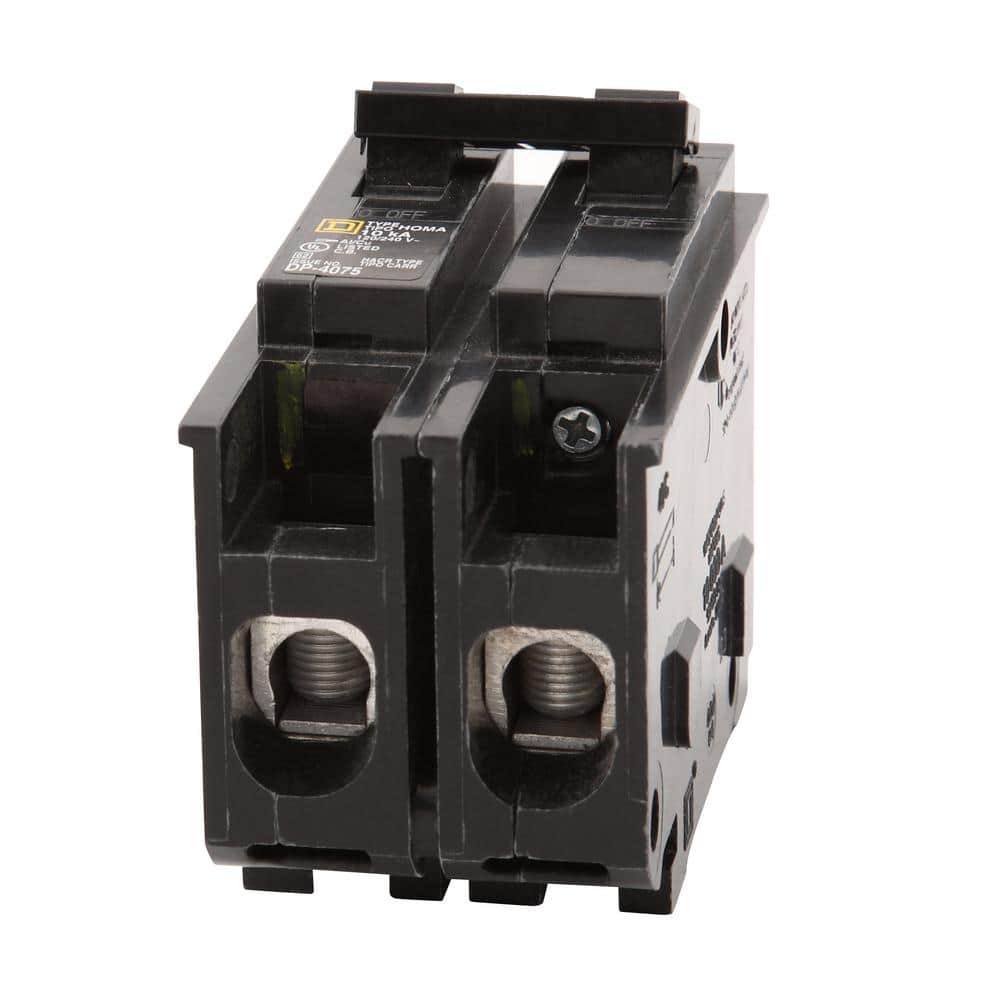

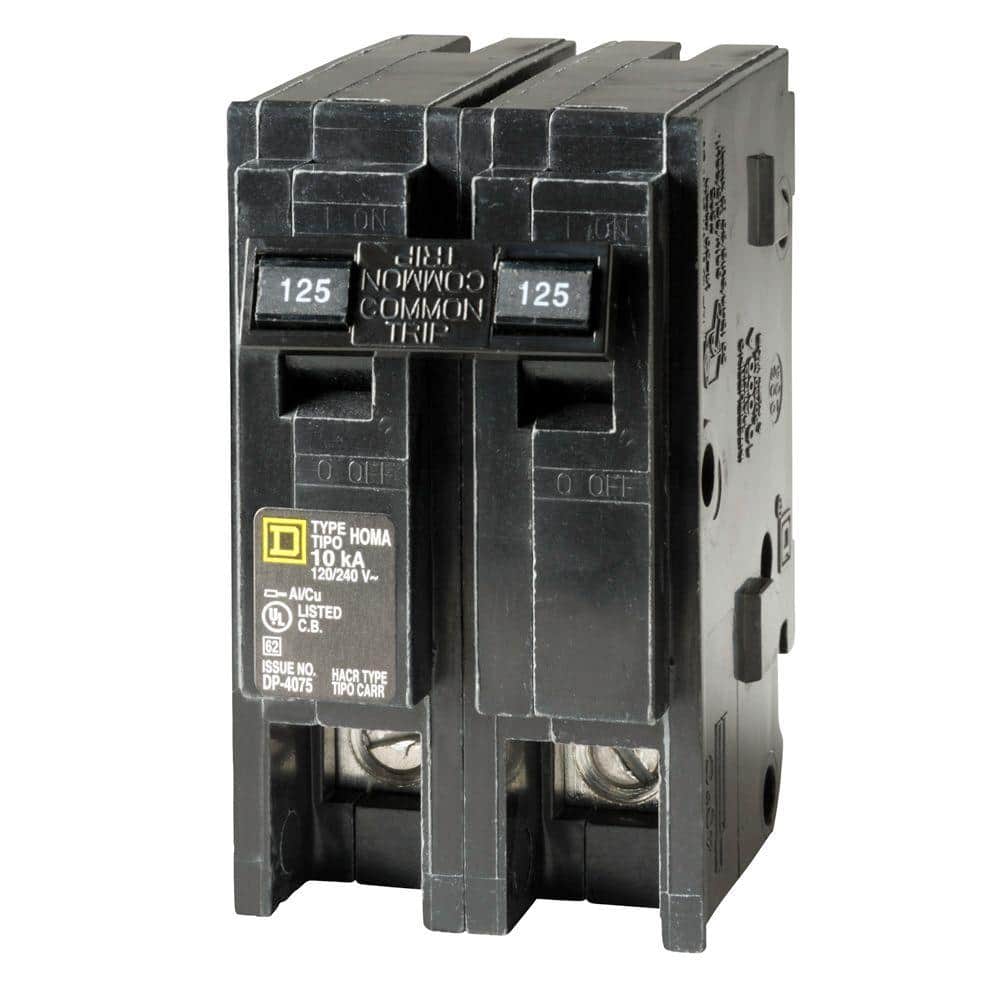

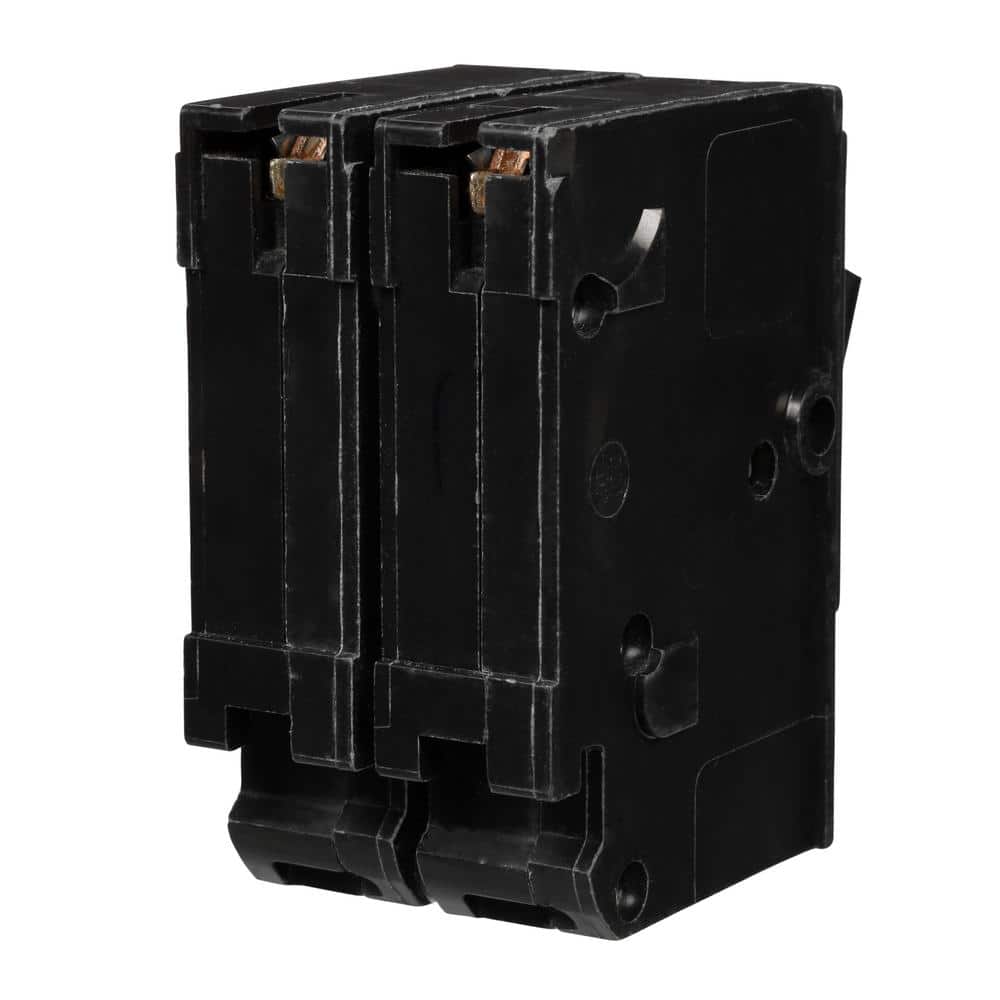

Square D Homeline 125 Amp 2-Pole Circuit Breaker, HOM2125CP
Homeline 125A 2-Pole Circuit Breaker
This Square D Homeline 125A 2-pole breaker provides overload and short-circuit protection for 120/240V AC branch circuits. It features a thermal-magnetic trip unit, 10 kA interrupt rating, and plug-on mounting compatible with Homeline panels and CSEDs.
Key Features:
- Thermal-Magnetic Protection: Detects short surges and long-term overcurrent for reliable protection
- Homeline Compatibility: Plug-on design fits Homeline load centers and CSEDs requiring two spaces
- High Interrupting Capacity: 10,000 AIR for dependable fault clearing
- Dual-Pole, 125A Rating: Suitable for 120/240-Volt applications and larger branch circuits
- UL Listed: Safety tested and compliant with industry standards
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Amperage | 125A |
| Poles | 2-Pole |
| Voltage | 120/240 VAC |
| Interrupt Rating (AIC) | 10,000 |
| Trip Unit | Thermal Magnetic |
| Mounting Type | Plug-On |
| Connection Type | Non-Neutral |
| Breaker Type | Standard |

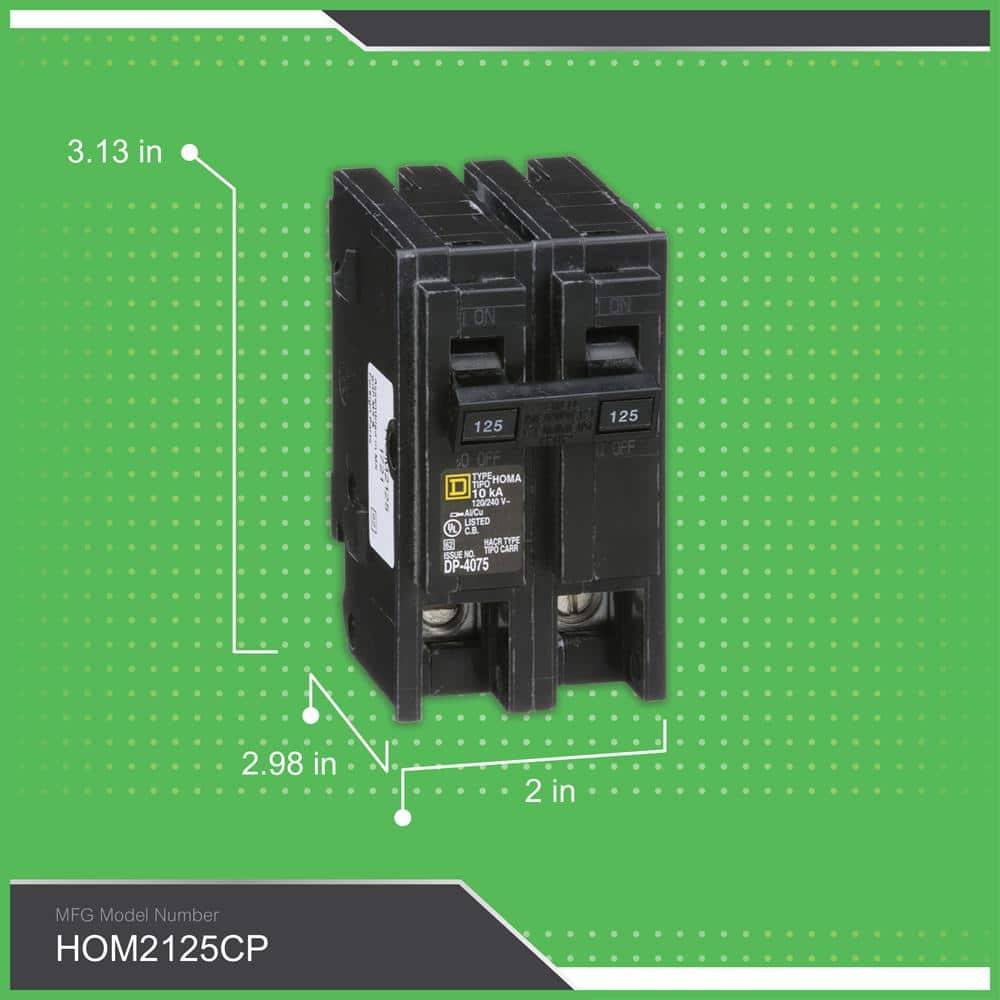

| Product Dimensions (H x W x D) | 3.13 in x 2 in x 2.98 in |
| Weight | 0.85 lb |
| Certifications | UL Listed, ANSI certified |
| Material Compatibility | Al/Cu conductors |
| Pack Size | 1 |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all Homeline panels?
A: It is designed for Square D Homeline load centers and CSEDs that have two available spaces; always verify panel labeling for compatibility.
Q: What is the interrupting rating (AIR)?
A: 10,000 Amps at 120/240 VAC.
Q: What type of trip mechanism does it use?
A: A thermal-magnetic trip unit for both instantaneous and long-duration fault protection.
Q: Can it be used on aluminum or copper wire?
A: Yes, it is rated Al/Cu—follow the installation guide for proper torque and wire size.
Q: What certifications does it have?
A: UL Listed and ANSI certified.
Streamlined Power, Architected for Confidence
In a well-considered home, even the unseen components deserve impeccable design. The Homeline breaker’s compact, sculpted profile conceals robust thermal‑magnetic technology—quiet strength that anchors your electrical story. Pair it with a clean, labeled panel layout for a crisp, orderly utility space. It’s the discreet luxury of reliability, elevating everyday living with effortless assurance.
Choose Homeline 125A protection today for safe, reliable power in your 120/240V circuits.
