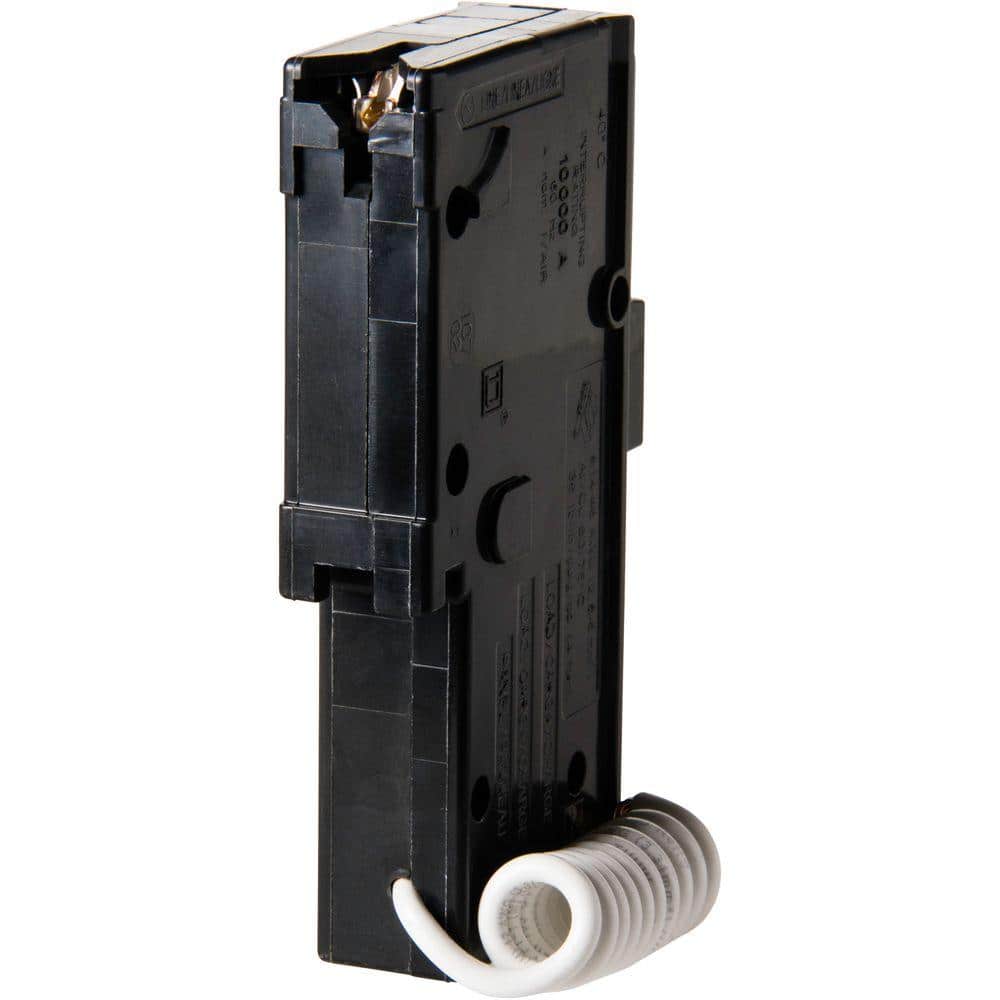

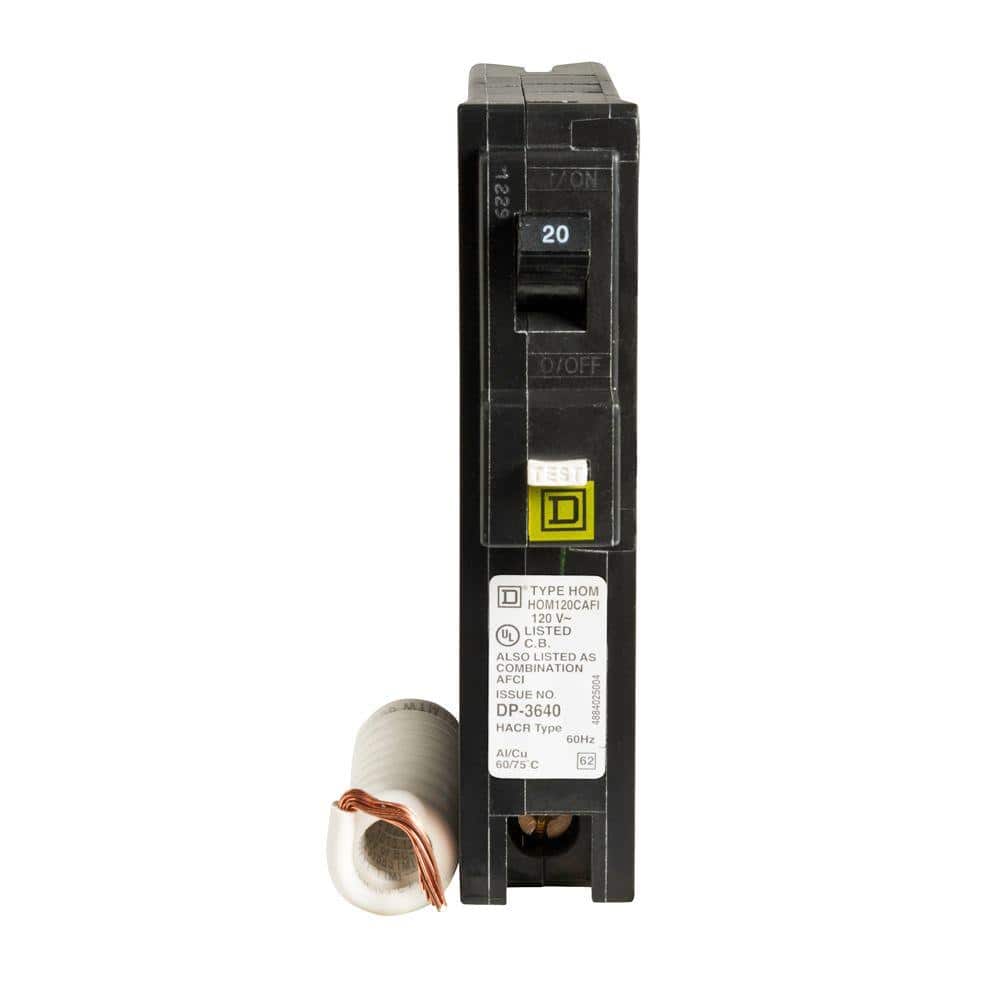

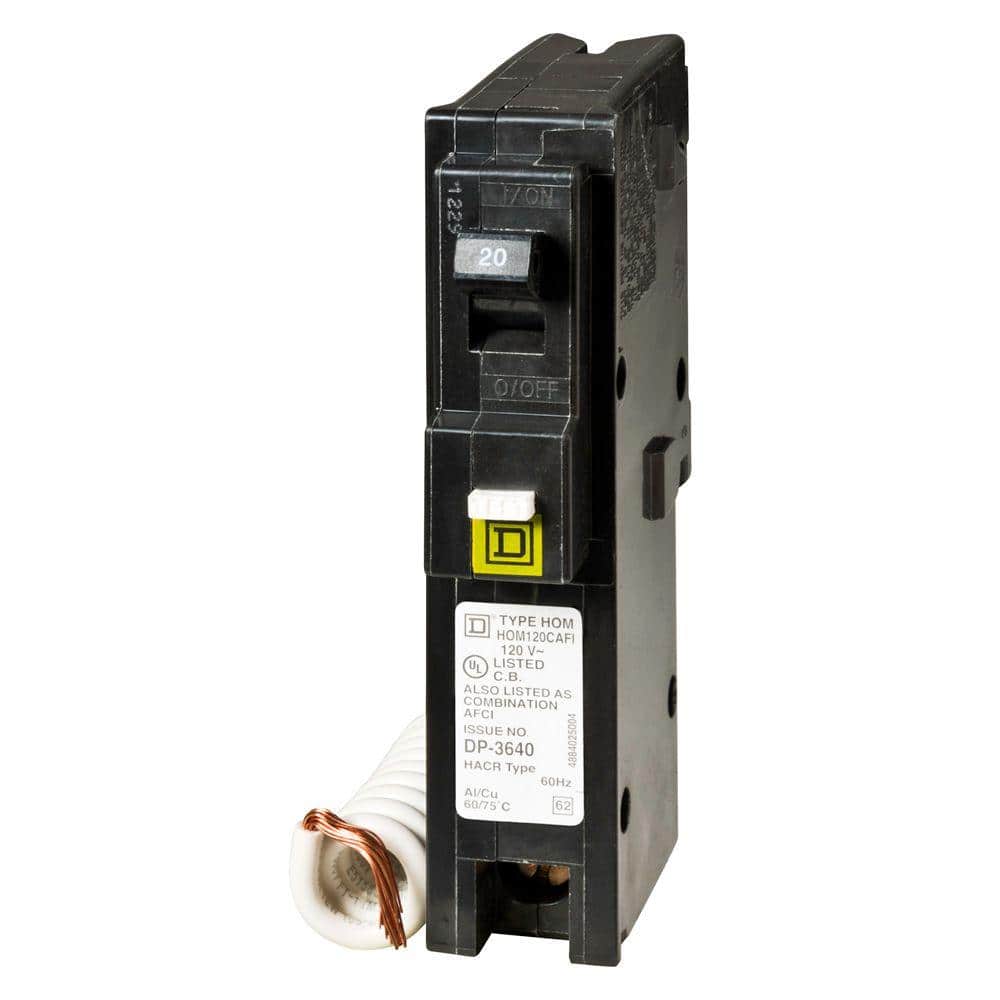

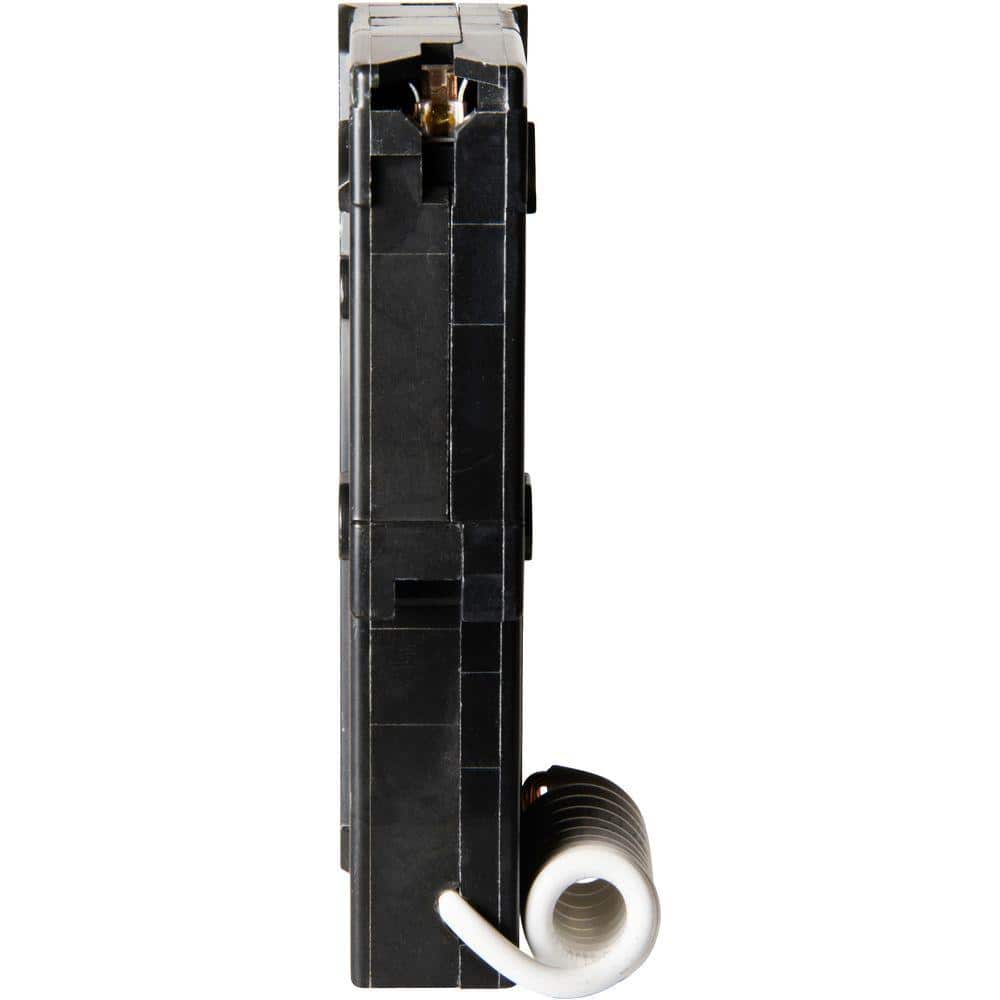

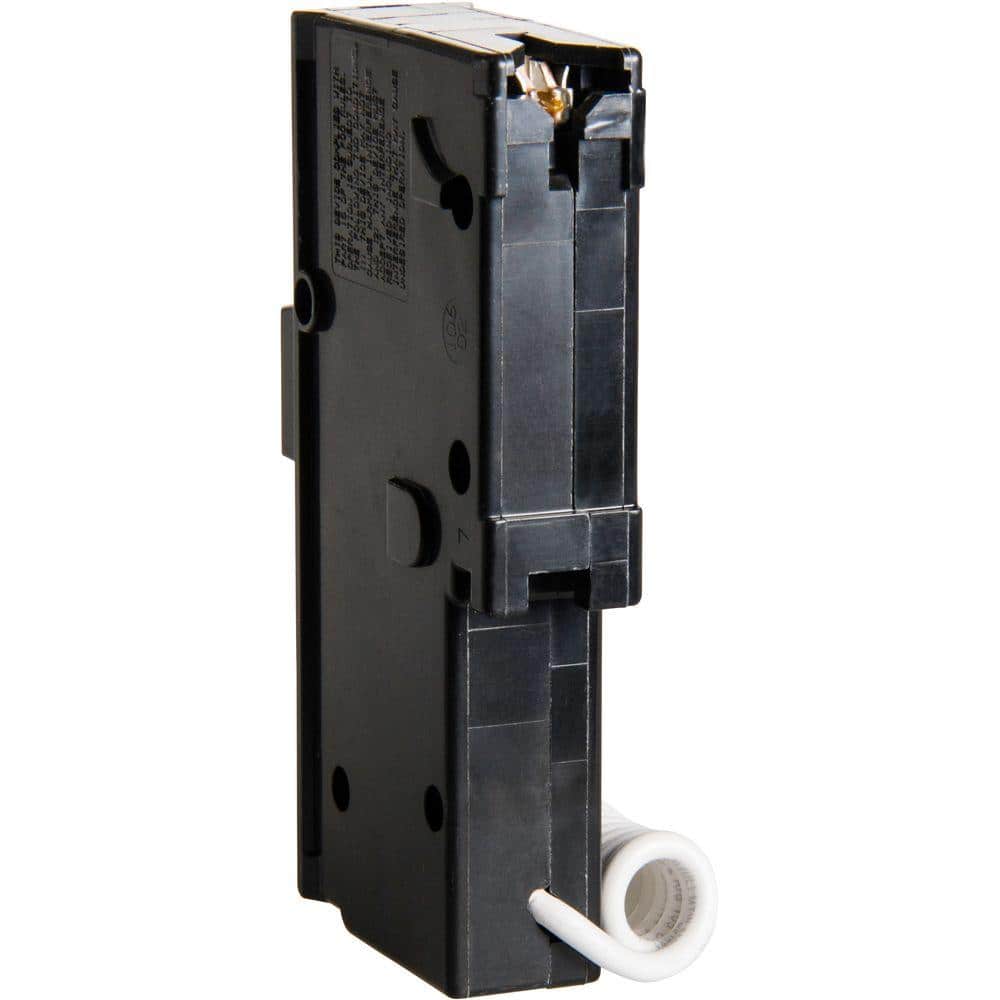

Square D Homeline 20-Amp Single-Pole Combination Arc Fault Circuit Breaker, HOM120CAFIC
Homeline 20A Single-Pole AFCI Breaker
This Square D Homeline 20-amp, single-pole combination AFCI circuit breaker protects entire branch circuits from parallel and series arcing faults while providing overload and short-circuit protection. Designed for Homeline load centers, it features Time-Saver Diagnostics for faster troubleshooting and includes a pigtail neutral connection.
Key Features:
- Arc-Fault Protection: Detects parallel and series arcing faults to help prevent electrical fires
- Time-Saver Diagnostics: Advanced trip indication speeds troubleshooting to reduce downtime
- Homeline Compatibility: Fits Homeline panels and CSEDs using 1 space
- Neutral Pigtail Connection: Simple plug-on installation with attached neutral lead
- UL Listed Safety: 10,000 AIC rating and 120/240 VAC operation for residential use
Please check the Product Data Sheet Here
Specifications Table:
| Specification | Details |
|---|---|
| Series | Homeline |
| Breaker Type | Standard (Combination AFCI) |
| Interruption Type | AFCI |
| Maximum Amperage | 20 A |
| Number of Poles | Single |
| Number of Spaces | 1 |
| Mounting Type | Plug-On |
| Connection Type | Pigtail |
| Voltage | 120/240 VAC |
| AIC Rating | 10,000 |
| Trip Unit | Electronic |
| Certifications and Listings | UL Listed |

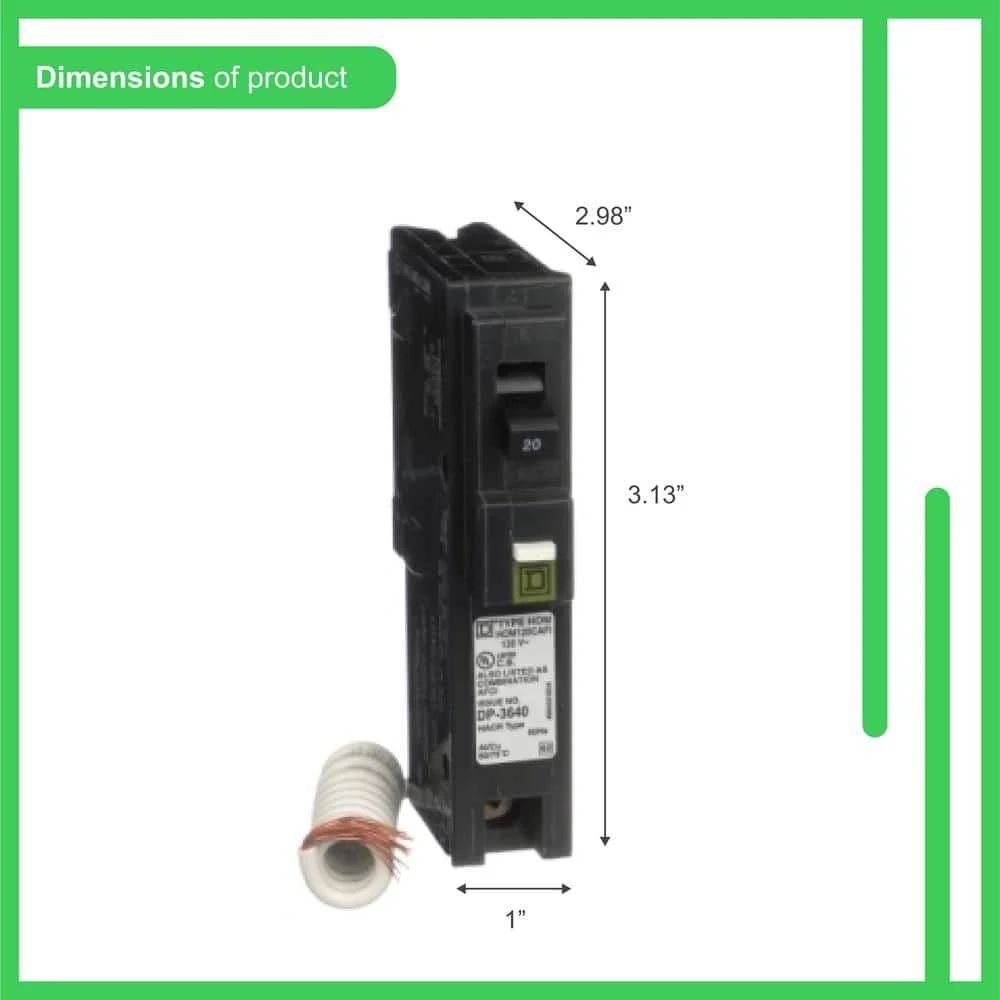

| Product Height | 3.13 in |
| Product Width | 1 in |
| Product Depth | 2.98 in |
| Manufacturer Warranty | Limited lifetime for the life of the Homeline load center in which it is installed |
Frequently Asked Questions (FAQ):
Q: Is this breaker compatible with all Square D panels?
A: It is designed specifically for Square D Homeline load centers and CSEDs; it will not fit QO series panels.
Q: What amperage and pole configuration does it support?
A: It is a 20-amp, single-pole breaker.
Q: Does it provide standard overload and short-circuit protection?
A: Yes, in addition to AFCI arc-fault protection, it provides overload and short-circuit protection.
Q: How much space does it require in the panel?
A: It occupies one space in a Homeline panel.
Q: Is it UL listed and what is the interrupt rating?
A: Yes, it is UL Listed with a 10,000 AIC interrupt rating.
Smart, Discreet Protection for Modern Homes
This sleek Homeline breaker quietly elevates a home’s safety backbone, blending into the panel while delivering advanced arc‑fault protection. The signature Square D test button and compact one‑space profile keep the look clean and efficient. Pair it with a well-organized load center to create a polished electrical hub that feels intentional. It’s a refined essential for luxurious living with peace of mind.
Upgrade your panel with Homeline AFCI protection and troubleshoot faster—add the HOM120CAFIC to your cart today.
